AVSIM Library - Search Results
| Category: Flight Simulator X - Gauges | |
| PFD for Flight Instrument Panel |
|
Images related to this file:
File Description:
For Saitek Pro Flight Instrument Panel.
This Primary Flight Display (PFD) Glass type gauge provides following utilities:
1. Artificial horizon with sliding bug (yellow).
2. Moving tapes for: Air speed, Altitude, Heading.
3. Detail window for altitude.
4. Needle for vertical speed.
5. Glide slope and Localizer bars, they appear when in range of ILS only.
6. Digital values for: Total Air Temperature (TAT), QNH, Mach number, VOR 1 selected course, VOR 1 bearing, DME 1 range, Radio height altitude up to 2000 feet, above a bar go through the window, vertical speed, a minus sign appears when vertical speed is negative.
7. Autopilot bugs for: Selected altitude, Selected speed, Selected heading. Rmk: Bugs appear only when autopilot ALT, SPD or HDG functions are selected.
8. Display Autopilot functions with Text acronysm in yellow: AP, Autopilot Master On, THR, auto throttle mode engaged, SPD, air speed mode selected, HDG, heading mode selected, NAV, navigation mode selected (VOR 1), APR, approach mode selected, BC, back course mode selected.
9. Knobs functions: Right, allows to change QNH value. Left, allows to move VOR 1 course.
| Filename: | PFD_for_Flight_Instrument_Panel.zip |
| License: | Freeware |
| Added: | 23rd May 2011, 22:37:18 |
| Downloads: | 1,096 |
| Author: | Philippe Verhaege |
| Size: | 249.48 KB |
| Category: Flight Simulator X - Gauges | |
| pfdvge Update |
|
File Description:
This is installation file update. For SaiFlightSimX.xml portion I missed a code, instead of File="pfdvge.xml" read File="Gauges\pfdvge.xml"
Thanks to Frits.
| Filename: | pfdvge_Update.zip |
| License: | Freeware |
| Added: | 25th May 2011, 17:31:05 |
| Downloads: | 274 |
| Author: | philippe verhaege |
| Size: | 2.92 KB |
| Category: Flight Simulator X - Gauges | |
| Multi function gauge for Saitek Flight Instrument Panel |
|
Images related to this file:
File Description:
This is a panel I created to get as much information I could onto a single Flight Instrument Panel. It is not realistic at all but it serves my needs. Feel free to use and change the panel to your liking.
It has 43 functions, including full PFD, wind indicator, nagivation aids, flight plan support.
| Filename: | Multi_function_gauge_for_Saitek_Flight_Instrument_.zip |
| License: | Freeware |
| Added: | 27th May 2011, 21:31:04 |
| Downloads: | 629 |
| Author: | Emile van Gerwen |
| Size: | 36.95 KB |
| Category: Flight Simulator X - Gauges | |
| Primary Flight Display (PFD) Updates |
|
File Description:
A good flight has to end with a great landing. For a great landing you will need precision. And for precision you need an accurate and readable RadioAltimeter (radalt) reading.
FSX does provide radalts with most jets (B737, A321 etc), but they are not accurate and sometimes not readable (e.g. the A321).
With this update 3 different types of aircraft receive a correction to the radalts readings and they are now easily read, almost like the real thing.
| Filename: | Primary_Flight_Display_PFD_Updates.zip |
| License: | Freeware |
| Added: | 28th May 2011, 19:54:14 |
| Downloads: | 746 |
| Author: | Dimitris Moschos |
| Size: | 938.68 KB |
| Category: Flight Simulator X - Gauges | |
| Moving Map Display |
|
File Description:

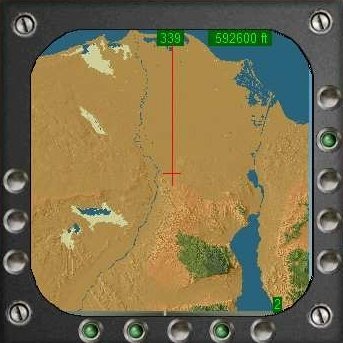

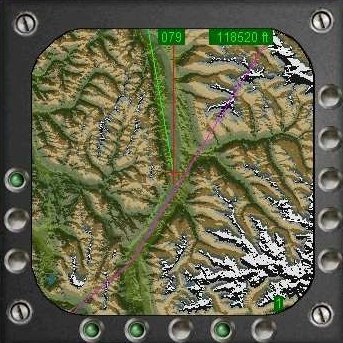

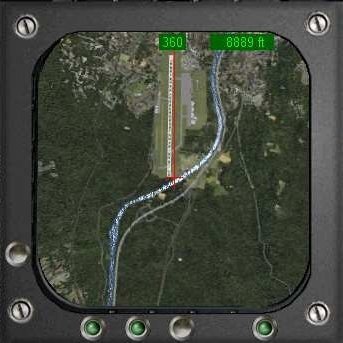

This is an adaptation of the FSX gps map in which I removed all the functions I didn't want. It simply displays the map with range rings and allows you to add or delete some of the standard items such as airspace boundaries, a compass ring, the ILS "feathers", etc.
| Filename: | Moving_Map_Display.zip |
| License: | Freeware |
| Added: | 7th February 2011, 00:41:51 |
| Downloads: | 980 |
| Author: | Bob Picht |
| Size: | 8.14 KB |
| Category: Flight Simulator X - Gauges | |
| Saab 2000 Panel Fix |
|
File Description:
Gauges and panel.cfg to fix the autopilot portion of the BSMP Saab 2000 to work with Flight Simulator X.
| Filename: | Saab_2000_Panel_Fix.zip |
| License: | Freeware |
| Added: | 10th February 2011, 19:55:37 |
| Downloads: | 1,144 |
| Author: | Mark Stockan |
| Size: | 1.83 MB |
| Category: Flight Simulator X - Gauges | |
| TR727_Gauge_Update.zip |
|
File Description:
This is an engine gauge(xml gauge)update for Thomas Ruth's new 727 model for FSX (tom7271.zip ). The gauge update changes the N1, N2, & EGT engine gauge calibration to reflect gauge readings within the normal and maximum ranges at TOGA(Take Off/Go-Around),MCT(Maximum Continuous thrust), and Cruise thrust settings. The original gauge readings at higher throttle settings indicated high off-scale for N1, N2, and especially EGT. The new gauge/thrust ratios may not perfectly reflect real 727 JT-8D engine settings in sim but the intent was to limit the maximum ranges.
Thanks to Thomas Ruth for making such an excellent 727 freeware model for FSX and giving permission for posting this small update.
| Filename: | TR727_Gauge_Updatezip.zip |
| License: | Freeware |
| Added: | 15th February 2011, 23:57:45 |
| Downloads: | 1,163 |
| Author: | Bry Hardee/Thomas Ruth |
| Size: | 8.6 KB |
| Category: Flight Simulator X - Gauges | |
| Meggitt/S-TEC Avionics Magic 2100 Autopilot |
|
Images related to this file:
File Description:
This gauge for FSX simulates the Meggitt/S-TEC Avionics Magic 2100 Autopilot as close as possible within the limits of XML-gauge design and the limits of the FSX autopilot.
| Filename: | MeggittSTEC_Avionics_Magic_2100_Autopilot.zip |
| License: | Freeware, limited distribution |
| Added: | 20th June 2011, 00:15:50 |
| Downloads: | 3,971 |
| Author: | Maarten Boelens |
| Size: | 551.99 KB |
| Category: Flight Simulator X - Gauges | |
| Advanced Radar System 2 (ARS2) |
|
Images related to this file:
File Description:

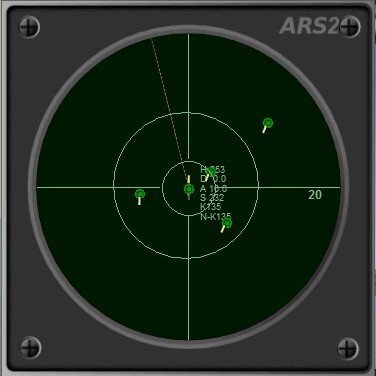

This Advanced Radar System (ARS2) is a enhanced version of the ARS system Version 1.0.
I includes all the displays function from the ARS version 1.0.
New features for ARS2:
ARS2 includes an enhanced tracking function which allows to track an
AI aircraft now regarding heading, speed and altitude. It includes two
simple XML elements which allows the user to change the tracking parameter
for the auto speed control and to set parameter for the re-fuel function as required.
The airfuel panel includes now two pointers in order to watch the distance and the altitude
relative to the AI.
For more information and installation see the documentation in the zip file.
COPYRIGHTS:
This gauge is freeware. All rights are reserved and no part of the package may
be duplicated or distributed without the expressed, written permission of the
author.
| Filename: | Advanced_Radar_System_2_ARS2.zip |
| License: | Freeware |
| Added: | 24th March 2011, 19:47:51 |
| Downloads: | 1,886 |
| Author: | Dietmar Loleit |
| Size: | 1.61 MB |
| Category: Flight Simulator X - Gauges | |
| HSI gauge for PF instrument panel |
|
File Description:
This HSI Glass type gauge provides following utilities:
Digital values for: VOR 1 course, Heading, Autopilot heading, VOR 1 bearing, VOR 2 bearing, ADF bearing, DME 1, DME 2.
Needles of: VOR 1, VOR 2, ADF and horizontal situation bar.
Indexes of: Vertical situation bug and Autopilot heading.
Knobs functions: Right, allows to move autopilot index and left, allows to move VOR 1 course.
Instructions in English and French
| Filename: | HSI_gauge_for_PF_instrument_panel.zip |
| License: | Freeware |
| Added: | 27th March 2011, 02:38:16 |
| Downloads: | 1,309 |
| Author: | Philippe Verhaege |
| Size: | 110.14 KB |
