| Category: Flight Simulator X - Gauges | |
| AP_MultiFuel_Gauges for FIP |
|
Images related to this file:
File Description:

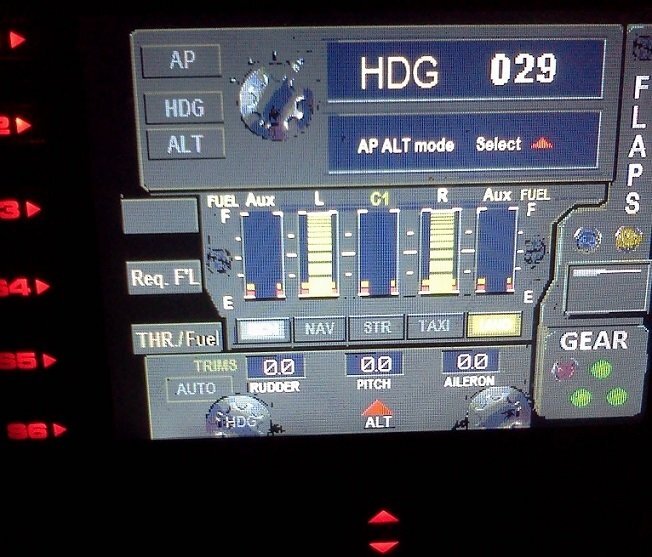

This set of 3 gauges is for use in the Saitek FIP and is an extension to my FIP gauge. That set of 3 gauges was designed to complement the Saitek AP/Multi panel and primarily showed the selected AP Altitude and Vert Spd whilst the Saitek AP/multi panel was displaying HDG. The second main part of those gauges were the Fuel Level displays, each gauge displaying a different combination of fuel tanks to suit the aircraft being flown and thus offered functionality for all types of aircraft.
This set of 3 gauges is designed for the same purpose but now encompasses a working AP that allows you to select HDG, ALT and VS values and activate the HDG and ALT mode (and AP master switch) to enable auto-pilot flight (for those who have a FIP but not an AP/multi panel).
For those who have an AP/multi panel, it gives a backup AP in your build/rig (although it all works off the same FS telemetry, I have found that when the AP/multi-panel freezes, especially the 'Alt' button, then this FIP gauge can de-activate it. The combinations displayed are those that suit my choice of aircraft, however it is easy to re-configure gauge Elements (fuel tank names) and artwork (fuel gauge titles) to suit the combination you prefer.
These gauges also retain the gear, flaps and light indicators, auto rudder on/off button plus rudder and aileron trim capability that were in the previous gauges. An additional feature is the battery switch will now turn off the AP display and fuel levels.
The artwork in these gauges has also been upgraded a bit and a template artwork is included to assist in customising.
| Filename: | AP_MultiFuel_Gauges_for_FIP.zip |
| License: | Freeware |
| Added: | 20th October 2014, 16:00:33 |
| Downloads: | 265 |
| Author: | Robert Budd |
| Size: | 764.26 KB |
| Category: Flight Simulator X - Gauges | |
| FIP - 5 Gauge Display - 2 Engine |
|
Images related to this file:
File Description:
This set of gauges is for use in the Saitek FIP and has been developed specifically for the Baron 58 and variants but should work with other twin prop aircraft. There are 3 options-
option 1. a pair of gauges for displaying on 2 FIPs (layout is similar to the fsx BB58 layout)
option 2. One gauge for displaying only on 1 FIP (left and right eng needle on each of the 5 main instruments )
option 3. a pair of gauges for displaying on 2 FIPs with larger diameter gauges and more user interaction than in 1. above.
1,2, & 3 all have the 5 main engine instrumentation ( RPM, Manifild Pressure, Fuel Flow rate, Oil Temp and Pressure, CHT/EGT Temp.) Additional features are added .e.g Marker Beacon indicators plus indicator of left / right fuel tank selected for each engine, NAV 1 & NAV 2 with DME data.
Option 1 & 3 also has fuel pump switches, alternator switches, starter buttons, cowl flaps and Amps (total load) gauge, and Battery volts gauge.
Option 3 also has additional avionics data and avionics and battery switch buttons. All this enables the aircraft to be started from cold and shut down to cold. The avionics data is useful if you only have one Saitek radio panel. i.e. dont have to keep clicking / rotating switches all the time. This option also gives user ability to alter NAV 1 standby frequency and swap to active.
With the 2 gauges in option 3 above plus my earlier FIP gauge containing a working Auto pilot and fuel levels / flaps and landing gear indicators (refer "FIP-AP Multi Fuel Gauges") there is everything required (not the primary flight display instruments) for flying a single or twin prop aircraft displayed across either 2 or 3 FIPs.
| Filename: | FIP__5_Gauge_Display__2_Engine.zip |
| License: | Freeware |
| Added: | 30th October 2014, 06:24:58 |
| Downloads: | 250 |
| Author: | Robert Budd |
| Size: | 2.4 MB |
| Category: Flight Simulator X - Gauges | |
| C-130 T.I.T. Gauge |
|
Images related to this file:
File Description:

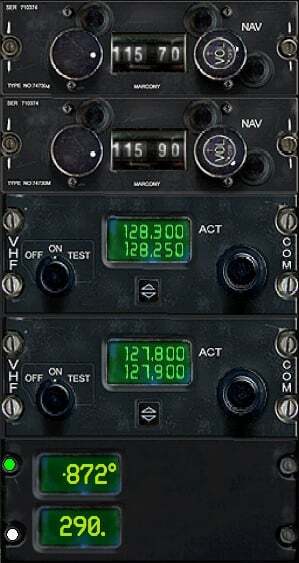

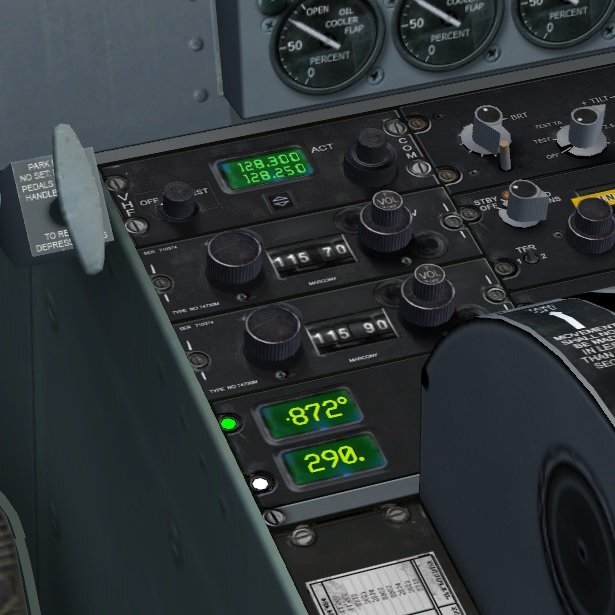

This is an XML gauge that simulates the Turbine Inlet Temperature (T.I.T.) for Captain Sim's C-130 X-perience version 1.3 for FSX.
Note: All gauge click functions are accessed from the 2D gauge only.
Features included in this gauge:
- Simulated Turbine Inlet Temperature (T.I.T.)
- Virtual Cockpit installation
- Access to 2D panel via VC click-spot (Radio Stack)
- T.I.T. follow for Take-off, climb and cruise
- Display toggle (top): T.I.T., Cruise Ceiling and Current Elevator Trim
- Display toggle (bottom): Engine Torque, Engine Fuel Flow and True Airspeed (knots)
- T.I.T. follow will disconnect when altitude hold is selected and climb temperature is above 900°C
- Pre-defined selectable temperatures for T.I.T. follow: user selectable, 970°, 1010° and 1049°
- T.I.T. display will indicate T.I.T. follow is within ±2°C control during climb
- GTC sound fix for start-up, run and shut-down of Gas Turbine Compressor
| Filename: | C130_TIT_Gauge.zip |
| License: | Freeware, limited distribution |
| Added: | 21st August 2016, 20:28:29 |
| Downloads: | 441 |
| Author: | Paul Tally |
| Size: | 3.94 MB |
| Category: Flight Simulator X - Gauges | |
| sd2gau37 |
|
File Description:
FSX and P3D Gauge Creation Tutorial Rev.37
Not for non-programmers but can be used by non-C programmers. Target changed specifically to FSX and P3D, although the information still mostly applies to FS9 too. SimConnect As A Gauge completely overhauled. Corrections to problems with the as-released Mixed Mode Sample in both FSX and P3D. Changes to the declaration of mouse flags with the newer versions of Visual Studio. Other new and updated topics.
See the Revision List for the most important updates.
FOR PROGRAMMING C-LANGUAGE GAUGES ONLY.
| Filename: | sd2gau37.zip |
| License: | Freeware |
| Added: | 16th April 2018, 16:41:33 |
| Downloads: | 186 |
| Author: | Dai Griffiths |
| Size: | 54.16 MB |
| Category: Flight Simulator X - Gauges | |
| SMS Airbus A32X series Gauge Upgrade |
|
Images related to this file:
File Description:
This is an Airbus A32X series OVERLAND SMS gauges upgrade pack. It is a very simple upgrade, yet it provides some extras and
makes the overall flying experience of the A32X series more enjoyable.
| Filename: | SMS_Airbus_A32X_series_Gauge_Upgrade.zip |
| License: | Freeware |
| Added: | 14th June 2015, 18:51:17 |
| Downloads: | 419 |
| Author: | Dimitrios Moschos |
| Size: | 5.67 MB |
| Category: Flight Simulator X - Gauges | |
| Cockpit Sounds for ND AW-109 |
|
Images related to this file:
File Description:
The archive contains two gauges for the Nemeth's AW-109. One adds sounds for each single switch, lever and button to make the cockpit alive. The other will allow a true Cold And Dark start. All switches and engines will be OFF when the helicopter is loaded. A new Start Procedure is included. You can choose either to install both of them or only one.
| Filename: | Cockpit_Sounds_for_ND_AW109.zip |
| License: | Freeware |
| Added: | 25th April 2014, 20:41:30 |
| Downloads: | 341 |
| Author: | Daniel Gauthier |
| Size: | 5.19 MB |
| Category: Flight Simulator X - Gauges | |
| Cockpit Sounds and Cold and Dark for ND EC130 |
|
Images related to this file:
File Description:
The pack contains 2 kinds of gauges created for Nemeth Design's EC130 only. One adds cockpit sounds : all switches, levers and buttons have specific sound. The other allows to load the helicopter in a cold and dark state. You can install one or both gauges. By Daniel Gauthier.
| Filename: | Cockpit_Sounds_and_Cold_and_Dark_for_ND_EC130.zip |
| License: | Freeware |
| Added: | 28th April 2014, 11:55:06 |
| Downloads: | 319 |
| Author: | Daniel Gauthier |
| Size: | 230.83 KB |
| Category: Flight Simulator X - Gauges | |
| Beachcraft Baron 58 AP-Alt-VS-Fuel Gauge v1 |
|
Images related to this file:
File Description:
This gauge is for use in the Saitek FIP and has been developed specifically for the Baron 58 (FSX default) but also works fully with the E55. The gauge looks nothing like what you will find in the BB58 but I have incorporated the components that are found at the lower right side of the control yoke. It has been designed to complement the Saitek AP / Multi panel and to fit between the yoke and the multi panel.
The gauge is primarily to show the selected AP Altitude and Vert Spd whilst the AP / multi panel is displaying HDG. Placing it to the left of the AP / multi panel and at lower right side of the yoke puts all the elements of this gauge in roughly the position they would be found in a BB58. The 5 light indicators are just an addition I thought would be handy to have. The landing light indicator is right next to the
landing gear warning lights and acts as a reminder to have them on by the time the gear goes down.
| Filename: | Beachcraft_Baron_58_APAltVSFuel_Gauge_v1.zip |
| License: | Freeware |
| Added: | 6th July 2014, 14:12:53 |
| Downloads: | 191 |
| Author: | Robert Budd |
| Size: | 283.4 KB |
| Category: Flight Simulator X - Gauges | |
| AP - Alt - VS MultiFuel Flaps v1 |
|
Images related to this file:
File Description:
This gauge is for use in the Saitek FIP and is an extension to my recent Baron 58 (FSX default) gauge . That gauge was designed for a specific aircraft whilst this package of three gauges has the same functionality of the BB58 gauge but will work on all aircraft. Each of the three gauges displays fuel level for different tanks but are identical in all other respects. As part of your pre-flight checklist you will need to make sure the right gauge for the aircraft is being displayed.
The set of 3 gauges have been designed to complement the saitek AP / Multi panel. The gauges primarily show the selected AP Altitude and Vert Spd whilst the AP / multi panel is displaying HDG. Five indicators for "lights on" are included as well as lights for landing gear (in transition and down) . The flaps indicator shows a blue light for intermediate positions and a yellow light when at full down position. A separate flaps position indicator (numerical and needle) is included. The 5 fuel indicators in each gauge are vertical analogue 'meters'. Rudder and aileron trim is displayed and controlled by the two FIP rotary knobs. Pitch trim readout and other functions is included.
NOTE. This package includes a pitch trim image file that was inadvertently left out of my original BB58_AP_Alt_VS_and_Fuel_v1.zip folder.
| Filename: | AP__Alt__VS_MultiFuel_Flaps_v1.zip |
| License: | Freeware |
| Added: | 12th July 2014, 07:40:09 |
| Downloads: | 398 |
| Author: | Robert Budd |
| Size: | 183.72 KB |
| Category: Flight Simulator X - Gauges | |
| Airbus A380 Checklist Gauge |
|
Images related to this file:
File Description:
An automated checklist screen for the Airbus A380. Tested with Project Airbus A380 with the use of Tom Ruth's A340 panel and VC. Update text file included. Minor fixes only. Previous uploads from other websites have errors. PDF checklist file included.
| Filename: | Airbus_A380_Checklist_Gauge.zip |
| License: | Freeware, limited distribution |
| Added: | 8th November 2010, 04:21:53 |
| Downloads: | 1,435 |
| Author: | Diego Roxas |
| Size: | 443.56 KB |
