Category: Navigation and ATC - Navigation
NAT Routing

File Description:
NAT Routings for flights across the Atlantic. Has NARs, and eastbound NERs. Based on AIRAC 0804.

Filename:	NAT_Routing.zip
License:	Freeware
Added:	10th April 2008, 21:12:52
Downloads:	737
Author:	Zafar Ballard
Size:	50.98 KB

Category: Navigation and ATC - Navigation
Papua New Guinea Charts 2 of 3

Images related to this file:

File Description: Calibrated for FSMap, but scanned images can be used in other map software, such as FSM Moving Map (FSMMM) by Rana Hossain. Chart source: Topographic Maps U.S. Army Map Service, Series T504, original scale 1:250,000, date 1964-. Courtesy of the University of Texas Libraries, The University of Texas at Austin. Missing: I could not find equivalent charts for New Britain; for this island, a lower-quality chart is included.

Filename:	Papua_New_Guinea_Charts_2_of_3.zip
License:	Freeware
Added:	7th May 2010, 10:45:02
Downloads:	795
Author:	David Wilson-Okamura
Size:	34.63 MB

Category: Navigation and ATC - Navigation
IFR Enroute High Alt Charts for Moving Map Application

Images related to this file:

• IFR_Enroute_High_Alt_Charts_for_Moving_Map_Applica_1.jpg

File Description:

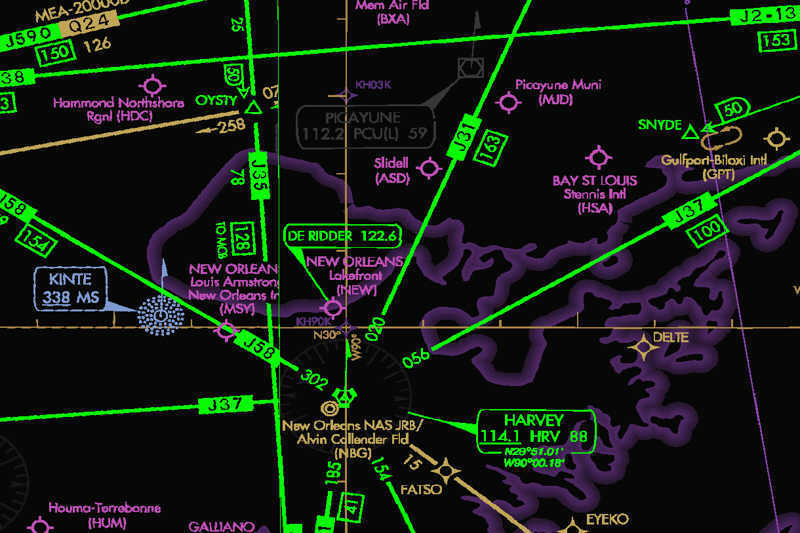

IFR ENROUTE HIGH ALTITUDE chart chunks from the late 2009 charts, formatted in the lat/long geographic coordinate system for GPS, moving map application for flight simulation use. These chart chunks were converted to the JPEG format for compatibility and size. Coverage is the lower 48 H-series divided into 45 JPEG tiles from a full mosaic. Included is the needed projection files and world files. The images are customized for moving map display (see link), and included is a Legend in PDF format. Note: This type of map is an equal grid and no further calibration is needed, for users of FSM Moving Map, just mass import, done.

Filename:	IFR_Enroute_High_Alt_Charts_for_Moving_Map_Applica.zip
License:	Freeware
Added:	13th April 2010, 19:11:17
Downloads:	328
Author:	David Myers
Size:	88.99 MB

Category: Navigation and ATC - Navigation
IFR EnRoute High Alt Charts for Aerosoft's FSMap

Images related to this file:

• IFR_EnRoute_High_Alt_Charts_for_Aerosofts_FSMap_1.jpg

File Description:
IFR enroute high altitude chart chunks from the late 2009 charts, formatted in the lat/long geographic coordinate system for FSMap moving map application for flight simulation use. The images are customized for moving map display (see link), and included is a Legend in PDF format. Coverage is the lower 48 H-series divided into 45 tiff tiles from a full mosaic and converted to baseline 8bit tiffs with packbits compression applied. Included is the FSMap fsm Calibration file for importing. No further calibration is needed, just import, save, and enjoy.

Filename:	IFR_EnRoute_High_Alt_Charts_for_Aerosofts_FSMap.zip
License:	Freeware
Added:	18th April 2010, 09:55:51
Downloads:	607
Author:	David Myers
Size:	31.5 MB

Category: Navigation and ATC - Navigation
Papua New Guinea charts 1 of 3

Images related to this file:

File Description: Calibrated for FSMap, but scanned images can be used in other map software, such as FSM Moving Map (FSMMM) by Rana Hossain. Chart source: Topographic Maps U.S. Army Map Service, Series T504, original scale 1:250,000, date 1964-. Courtesy of the University of Texas Libraries, The University of Texas at Austin. Missing: I could not find equivalent charts for New Britain; for this island, a lower-quality chart is included.

Filename:	Papua_New_Guinea_charts_1_of_3.zip
License:	Freeware
Added:	5th June 2010, 03:40:04
Downloads:	1,213
Author:	David Wilson-Okamura
Size:	34.25 MB

Category: Navigation and ATC - Navigation
Papua New Guinea charts for FSMMM

Images related to this file:

File Description: Re-upload. What these are: calibration files for use with Rana Hossain's freeware program FSM Moving Map (FSMMM) and the PNG Charts hosted by the AVSIM file library. What these are not: the charts themselves. In order to use the charts, you will need to download three additional files, which are much larger than this one: png_charts_1.zip (35mb), png_charts_2.zip (35mb), and png_charts_3.zip (36mb). Why not package everything together? To minimize file size. The original image files, which are quite large, were uploaded to AVSIM and calibrated for the payware program FSMap by David Wilson-Okamura. Within a few days, downloaders started asking how to use the charts with the freeware program FSMMM. New charts (which are quite large to store and download) weren't needed, just new calibration files (which are quite small). These were created by TERRY CARR, who is the hero of this download. To use the charts with FSMMM, first download all four of the files listed here, including this one. You don't need to download FSMMM again if you already have that installed.) Unzip all of them into the folder where you keep your FSMMM charts. Then run FSMMM and use the mass import feature. If you don't know how to do that, please read the manual or, if that doesn't help, Google is your friend.

Filename:	Papua_New_Guinea_charts_for_FSMMM.zip
License:	Freeware
Added:	5th June 2010, 05:21:06
Downloads:	542
Author:	Terry Carr, David Wilson-Okamura
Size:	11.97 KB

Category: Navigation and ATC - Navigation
Papua New Guinea charts 3 of 3

Images related to this file:

File Description: Re-upload. Calibrated for FSMap, but scanned images can be used in other map software, such as FSM Moving Map (FSMMM) by Rana Hossain. Chart source: Topographic Maps U.S. Army Map Service, Series T504, original scale 1:250,000, date 1964-. Courtesy of the University of Texas Libraries, The University of Texas at Austin. Missing: I could not find equivalent charts for New Britain; for this island, a lower-quality chart is included.

Filename:	Papua_New_Guinea_charts_3_of_3.zip
License:	Freeware
Added:	5th June 2010, 05:26:20
Downloads:	515
Author:	David Wilson-Okamura
Size:	35.88 MB

Category: Navigation and ATC - Navigation
Enroute Charts of the United States, Part 1

File Description:
12 High Altitude Enroute Charts for the Lower 48 United States. These are the original high resolution PDF maps available from National Aeronautical Charting Office (NACO). THESE ARE NOT CURRENT THEY MUST NOT BE USED FOR REAL WORLD NAVIGATION!!!!!

Filename:	Enroute_Charts_of_the_United_States_Part_1.zip
License:	Freeware
Added:	12th January 2010, 09:03:11
Downloads:	2,488
Author:	Matt Fox
Size:	89.98 MB

Category: Navigation and ATC - Navigation
Enroute Charts of the United States, Part 2

File Description:
Enroute Charts for the United States - Part 2 - High Altitude Lower 48 US and Alaska for Moving Map Displays. This version is intended for moving map systems. The original PDF maps have been down-sampled and processed to remove the map borders. They were then reprojected to Geographic coordinate system and converted to 8 bit TIFF files. THESE ARE NOT CURRENT!!!! THEY MUST NOT BE USED FOR REAL WORLD NAVIGATION!!!!!

Filename:	Enroute_Charts_of_the_United_States_Part_2.zip
License:	Freeware
Added:	12th January 2010, 09:04:25
Downloads:	1,195
Author:	Matt Fox
Size:	23.41 MB

Category: Navigation and ATC - Navigation
Enroute Charts of the United States, Part 3

File Description:
Enroute Charts for the United States. Part 3 - High Altitude Alaska, Caribbean and Pacific. 6 High Altitude Enroute Charts for Alaska, Caribbean and Pacific. These are the high resolution PDF maps available from National Aeronautical Charting Offic (NACO) https://naco.faa.gov/. THESE ARE NOT CURRENT!!!! THEY MUST NOT BE USED FOR REAL WORLD NAVIGATION!!!!!

Filename:	Enroute_Charts_of_the_United_States_Part_3.zip
License:	Freeware
Added:	12th January 2010, 09:05:52
Downloads:	1,166
Author:	Matt Fox
Size:	48.43 MB
