| Category: Flight Simulator X - Gauges | |
| TCAS and Traffic Display Gauge V2.0 |
|
Images related to this file:
File Description:
This TCAS and Traffic Display Gauge Version 2.0 includes significant improvements from V1.0. It has been developed for the FSX Flight Simulator SP1/2 also. It should also work with Acceleration.The functionality for the TCAS part is based on general specs for commercial aircrafts. It does not provide in detail the function for a specific aircraft model. It is a generic gauge, and can be simple added to any aircraft as a standalone popup window.
In addition the gauge provides a AI traffic display in the ranges of 10,20, and 40 miles.Within this display mode, no TCAS rules are valid, which means all AI aircraft are displayed independent of any altitude or distance.
Improvements in V2.0 are: 1: Full TCAS and traffic display capability is provided even though your aircraft is on the ground. Only the trigger of the alarm/warn sound and the blinking lamp display willbe blocked. 2: An AI HDG pointer will be displayed. It shows in which direction the AI is moving. 3: A bearing pointer has been introduced. It allows the pilot to point to a specific AI.4: The AI additional text info display follows the structure of an ATC text.5:The AI additional text can be selected individually per AI with a mouse click.
6: Each AI display contains a ID index number (0 � 20).7: The design of the TCAS and Traffic Display Box has been updated.8: Increased the number of AIs displayed on the screen in display mode.
For installation and functional description look at the doc inside the ZIp.
CREDIT goes to :
Stefan Schneider for his support on special XML issues and TCAS functionality.
Bob Familton for his review of the documentation and testing for SP1 FSX.
Doug Dawson for his dsd-XML-sound interface in order to generate the sounds.
| Filename: | TCAS_and_Traffic_Display_Gauge_V20.zip |
| License: | Freeware |
| Added: | 25th October 2010, 13:37:36 |
| Downloads: | 3,747 |
| Author: | Dietmar Loleit |
| Size: | 981.32 KB |
| Category: Flight Simulator X - Gauges | |
| Colored Smoke System |
|
File Description:
Based on a great idea from Lucas Sichardt (www.ifva.net ) I have developed a gauge which generates in different colores a trail of smoke. The smoke will be generated on individual positions of the aircraft by using smoke effects.
The parameter settings in this documentation are for the aircraft PC-7Astra .
The PC-7 model can be downloaded from AVSIM. However, the gauge can be installed for any aircraft.
The aircraft light function elements heve been used for this implementation.
The following light function have been used in order to generate 5 color configurations:
1. Recocnition
2. Cabin
3. Logo
4. Wing
5. Cockpit
Restriction:
By using this lights for smoke generation, the corresponding aircraft should not have this light switchen, or not using those.
Installation: For installation details, pls read the ReadMe documentation whiche is included in the zip file. The documentation is in german and english language.
| Filename: | Colored_Smoke_System.zip |
| License: | Freeware |
| Added: | 26th December 2008, 10:47:24 |
| Downloads: | 986 |
| Author: | Dietmar Loleit |
| Size: | 852.89 KB |
| Category: Flight Simulator X - Gauges | |
| V-One Callout for Boeing 757/767 |
|
Images related to this file:
File Description:

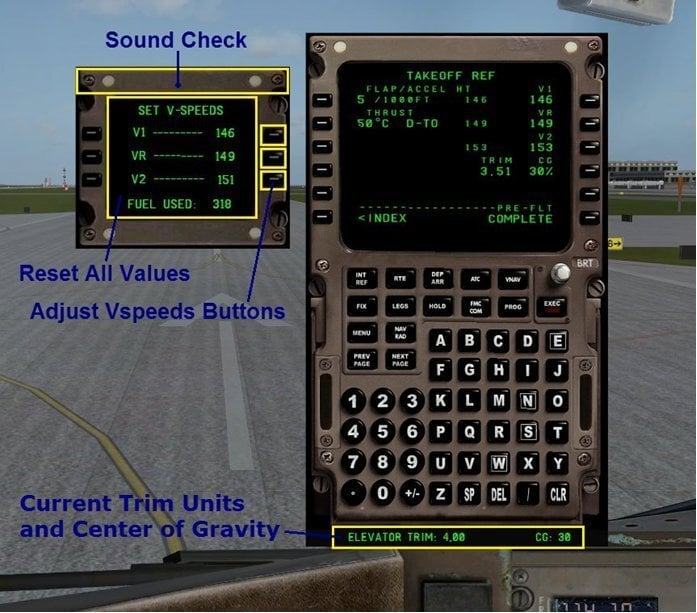

This is a First Officer (F/O) call-out XML gauge specifically for the CS (Captain Sim) 757 and 767. This gauge is not a substitute for correctly programming the CDU/FMS.
V-One Call-Out Sounds and Features-
[Take-Off:] V1, Rotate, Positive Rate, Gear-Up, Flaps-Up, Slats Retract
[Approach:] Slats Extended, Gear Down, Flaps 20, Flaps 25, Flaps 30
[Landing:] Spoilers Deployed*, Auto Thrust Available, 80 knots, 60 knots
[Always Available:] Auto Pilot Engage, Spoilers Deployed**, Altitude Alert
[* Auto spoilers must be armed]
[** Call-Out occurs when spoilers set to full (100%)]
Fuel used is displayed in either LB or KG based on FSX unit settings.
Current aircraft Center of Gravity (CG) is displayed.
Current Trim Units are displayed.
| Filename: | VOne_Callout_for_Boeing_757767.zip |
| License: | Freeware, limited distribution |
| Added: | 8th September 2012, 17:53:07 |
| Downloads: | 3,701 |
| Author: | Paul Tally |
| Size: | 2.46 MB |
| Category: Flight Simulator X - Gauges | |
| XML Sound Gauge |
|
File Description:
A gauge which plays sounds based on commands received from XML gauges. This gauge will allow XML gauge programmers to add sounds to their FS9 and FSX projects. It does presume a fair degree of XML knowledge, and is not for beginners. This version adds the ability to control volume and pan settings for multiple sounds on each gauge update. Version 5.2.0
| Filename: | XML_Sound_Gauge.zip |
| License: | Freeware |
| Added: | 27th August 2014, 14:03:19 |
| Downloads: | 1,552 |
| Author: | Doug Dawson |
| Size: | 98.16 KB |
| Category: Flight Simulator X - Gauges | |
| CB 5000 NAVRAD Navigational RADAR and Multi-Function Display ver 1.5 |
|
Images related to this file:
File Description:
Some of the features included in this gauge are customizable Traffic RADAR, Map Panning, TAWS map, and Nearest Airport Search with a 375 nm range listing up to 500 airports. Instrumentation Manual Included. Come Check Us Out - www.coosbayhops.com
| Filename: | CB_5000_NAVRAD_Navigational_RADAR_and_MultiFunctio.zip |
| License: | Freeware, limited distribution |
| Added: | 20th March 2013, 08:19:09 |
| Downloads: | 2,410 |
| Author: | Greg Swift (CoosBay Hops) |
| Size: | 2.89 MB |
| Category: Flight Simulator X - Gauges | |
| Saab 2000 Panel Fix |
|
File Description:
Gauges and panel.cfg to fix the autopilot portion of the BSMP Saab 2000 to work with Flight Simulator X.
| Filename: | Saab_2000_Panel_Fix.zip |
| License: | Freeware |
| Added: | 10th February 2011, 19:55:37 |
| Downloads: | 1,143 |
| Author: | Mark Stockan |
| Size: | 1.83 MB |
| Category: Flight Simulator X - Gauges | |
| Fuel Stat Gauge |
|
File Description:
This is a copy of Robert K Guy's famous Fuel_stat gauge which was lost in the crash and discovered on one of my old HDDs- it works in FSX, FS2004 and probably FS 2002
| Filename: | Fuel_Stat_Gauge.zip |
| License: | Freeware |
| Added: | 25th September 2010, 02:24:36 |
| Downloads: | 1,035 |
| Author: | John Jobber |
| Size: | 105.5 KB |
| Category: Flight Simulator X - Gauges | |
| Fuel Dump Gauges |
|
File Description:
Fuel Dump Gauges for FS9 and FSX
Two gauges to allow XML gauge programmers to implement customized fuel dump and load procedures. One uses FSUIPC and will work in both FS9 and FSX. The other uses the FSX SP2 version of SimConnect and does not require FSUIPC. Operation is much simplified from previous versions of this gauge. Freeware.
| Filename: | Fuel_Dump_Gauges.zip |
| License: | Freeware |
| Added: | 4th March 2012, 22:21:52 |
| Downloads: | 623 |
| Author: | Doug Dawson |
| Size: | 90.76 KB |
| Category: Flight Simulator X - Gauges | |
| Helicopter Trim Gauge |
|
File Description:
This gauge allows trimming of any helicopter in FSX in the same way fixed wing aircraft are trimmed, using the same keystrokes or axis assignment (the latter for elevator only). It also adds a little 2D panel to show current trims positions and allows separate configuration for different rotocraft. It is designed for FSX and is totally incompatible with previous versions of Flight Simulator.
| Filename: | Helicopter_Trim_Gauge.zip |
| License: | Freeware, limited distribution |
| Added: | 25th September 2008, 15:45:57 |
| Downloads: | 5,898 |
| Author: | Mike Krawczyk |
| Size: | 86.02 KB |
| Category: Flight Simulator X - Gauges | |
| FS2K+ and CFS+ Gauge Creation Tutorial Rev.27 |
|
File Description:
Not for non-programmers but can be used by non-C programmers. Updated section 'Adding Gauge Sounds' with the initial release of the DirectSound gauge code.
FOR PROGRAMMING C-LANGUAGE GAUGES ONLY.
Dai Griffiths, Dragonflight Design.
| Filename: | FS2K_and_CFS_Gauge_Creation_Tutorial_Rev27.zip |
| License: | Freeware |
| Added: | 8th August 2008, 11:56:08 |
| Downloads: | 742 |
| Author: | Dai Griffiths |
| Size: | 3.75 MB |
