| Category: Flight Simulator X - Gauges | |
| V-One Gauge for B707-300 with Call-Outs |
|
Images related to this file:
File Description:
This gauge is written specifically for Captain Sim's B707-300 aircraft (http://www.captainsim.com/products/x707/). It will inform you of appropriate take-off speeds (V-speeds), take-off trim units, Vref landing speeds, elapsed flight time, fuel used, optimum cruise altitude and optimum EPR setting. It will also indicate when the aircraft's max gross weight and TOW has been exceeded by displaying in red text. Take-off speeds are adjusted for altitude and temperature values. Flight time and fuel used can be reset at any time by clicking on their respective displays. Pounds (LB), Kilograms (KG), Celsius (C) and Fahrenheit (F) are toggled by a mouse click. Provisions have been made to allow user adjustments to Optimum Altitude, Optimum EPR and Center of Gravity values. Seven F/O take-off call-outs are included: 80 knots, V1, VR, V2, Gear-up, Flaps-up and Slats Retract.
| Filename: | v-one_cs707.zip |
| License: | Freeware, limited distribution |
| Added: | 3rd August 2012, 18:17:03 |
| Downloads: | 1,215 |
| Author: | Paul Tally |
| Size: | 1.04 MB |
| Category: Flight Simulator X - Gauges | |
| C-130 T.I.T. Gauge |
|
Images related to this file:
File Description:

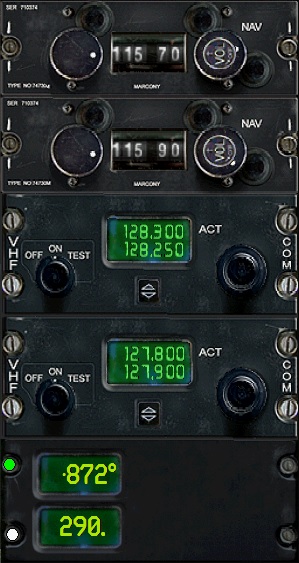

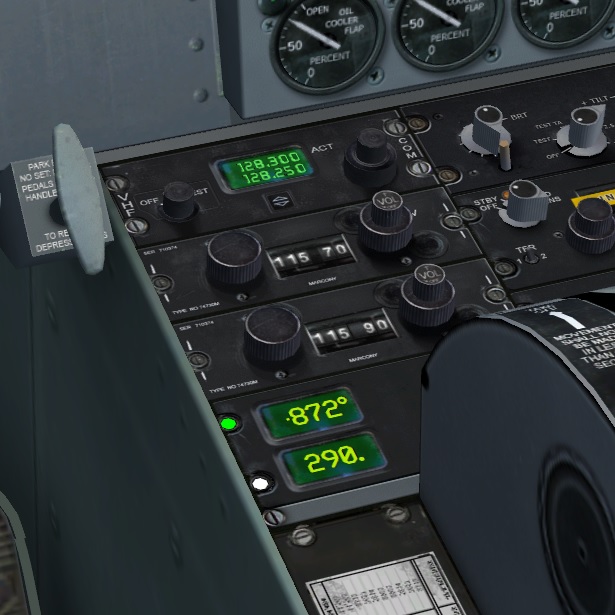

This is an XML gauge that simulates the Turbine Inlet Temperature (T.I.T.) for Captain Sim's C-130 X-perience version 1.3 for FSX.
Note: All gauge click functions are accessed from the 2D gauge only.
Features included in this gauge:
- Simulated Turbine Inlet Temperature (T.I.T.)
- Virtual Cockpit installation
- Access to 2D panel via VC click-spot (Radio Stack)
- T.I.T. follow for Take-off, climb and cruise
- Display toggle (top): T.I.T., Cruise Ceiling and Current Elevator Trim
- Display toggle (bottom): Engine Torque, Engine Fuel Flow and True Airspeed (knots)
- T.I.T. follow will disconnect when altitude hold is selected and climb temperature is above 900°C
- Pre-defined selectable temperatures for T.I.T. follow: user selectable, 970°, 1010° and 1049°
- T.I.T. display will indicate T.I.T. follow is within ±2°C control during climb
- GTC sound fix for start-up, run and shut-down of Gas Turbine Compressor
| Filename: | cs_c130_tit_gauge_ver1.0.zip |
| License: | Freeware, limited distribution |
| Added: | 21st August 2016, 20:28:29 |
| Downloads: | 437 |
| Author: | Paul Tally |
| Size: | 3.94 MB |
| Category: Flight Simulator X - Utilities | |
| CS L-1011-1 Trip Planner |
|
Images related to this file:
File Description:
Excel spreadsheet Trip / Fuel planner for Captain Sim's L-1011-1.
Accurate estimated fuel burn and flight time.
Input departure, destination and alternate ICAOs. Great circle distance and magnetic direction provided.
Runway information available for current flight plan and more.
| Filename: | cs_l-1011-1_trip_planner.zip |
| License: | Freeware, limited distribution |
| Added: | 18th December 2016, 07:32:39 |
| Downloads: | 894 |
| Author: | Paul Tally |
| Size: | 2.45 MB |
| Category: Flight Simulator X - Gauges | |
| Civa Ins Heading Display |
|
Images related to this file:
File Description:
This gauge is intended to be used with Simufly's CIVA Ins gauge and will display the aircraft's current heading in magnetic/true or the current heading bug position difference to the aircraft's current heading indicating left or rignt in degrees.
There are two CAB files included: one is generic for any properly functioning CIVA Ins installation (CivaHdgDisplay.CAB) and the other is specifically for the CS737-200/ADV (CivaHdgDisplay_CS737.CAB)
| Filename: | civahdgdisplay.zip |
| License: | Freeware, limited distribution |
| Added: | 22nd December 2012, 19:38:00 |
| Downloads: | 856 |
| Author: | Paul Tally |
| Size: | 8 KB |
| Category: Flight Simulator X - Flight Plans | |
| Civa Ins Data Cards for KSJC to KLAS |
|
File Description:
Civa Ins Data Cards for KSJC to KLAS. Waypoint cards (AWC), DME (ADC) cards, flight plan summary and FS9 flight plan is included.
| Filename: | ksjc_to_klas.zip |
| License: | Freeware, limited distribution |
| Added: | 26th December 2012, 19:06:50 |
| Downloads: | 194 |
| Author: | Paul Tally |
| Size: | 9 KB |
| Category: Flight Simulator X - Flight Plans | |
| Civa Ins Data Cards for KBOS to KMIA |
|
File Description:
Civa Ins Data Cards for KBOS to KMIA. Waypoint cards (AWC), DME (ADC) cards, flight plan summary and FS9 flight plan is included.
| Filename: | kbos_to_kmia.zip |
| License: | Freeware, limited distribution |
| Added: | 26th December 2012, 19:07:14 |
| Downloads: | 214 |
| Author: | Paul Tally |
| Size: | 9 KB |
| Category: Flight Simulator X - Flight Plans | |
| Civa Ins Data Cards for KLAX to KSFO |
|
File Description:
Civa Ins Data Cards for KLAX to KSFO. Waypoint card (AWC), DME (ADC) card, flight plan summary and FS9 flight plan is included.
| Filename: | klax_to_ksfo.zip |
| License: | Freeware, limited distribution |
| Added: | 26th December 2012, 19:07:40 |
| Downloads: | 321 |
| Author: | Paul Tally |
| Size: | 8 KB |
| Category: Flight Simulator X - Gauges | |
| Boeing 737-200/Adv Various Fixes |
|
File Description:
This gauge includes 4 fixes for Captain Sim B737-200/ADV.
The following gauges are included in one CAB file:
[1. APU and Ground Power (CS737_ApuGenGrdPwrMod)]
[2. Autopilot Disconnect buttons on both yokes (CS737_ApYokeDisc)]
[3. Autopilot Disconnect Warning Lights (CS737_ApButtnLt)]
[4. Yaw Damper Light (CS737_YawDampLt)]
Each gauge can be selectively installed in the panel.cfg file.
A simulated charging circuit that will charge a flat battery is included.
| Filename: | cs737_apugengrdpwr_complete.zip |
| License: | Freeware, limited distribution |
| Added: | 2nd February 2013, 19:06:19 |
| Downloads: | 1,362 |
| Author: | Paul Tally |
| Size: | 136 KB |
| Category: Flight Simulator X - Gauges | |
| V-One Gauge for Boeing 707-300 Complete |
|
Images related to this file:
File Description:
This gauge is specifically written for Captain Sim B707-300 and variants.
List of features: [New Items/Features]
Twenty-Two call-outs sounds integrated into gauge [15 new call-outs].
Take-off V-Speeds calculated for Flaps 14 with temperature and altitude adjustments.
[Take-off speed bugs automatically set for: V1, VR, V2].
[Flaps-up maneuvering speed (clean speed) bug set after flaps-up].
Optimum altitude and optimum EPR (EPR calc for M.80) are continually calculated.
Gross Weight overage will display in 'red' text. Tooltip indicates overweight value (LB/KG).
Take-off trim calculated for current gross weight.
Display units can be toggled between LB and KG (default LB).
Outside Air Temperature can be toggle between Fahrenheit and Celsius.
Resettable fuel use.
Resettable flight timer.
[Selectable Vref landing configurations, Vref40 (default) or Vref50].
[Approach / landing speed bugs automatically set for: Vref, Vref + 5, Vref + 10].
ZFW, Fuel, CG, Gross Weight and Barometric Pressure MSL (QNH) displayed.
['Barometer Set' call-out occurs when pressing keyboard letter 'B' (V-One gauge must be open)].
[Decision Height adjustment now on Data Card in hidden click-spot located on upper right corner].
[Now installation to a single location will work for all variants].
| Filename: | v-one_707_complete.zip |
| License: | Freeware, limited distribution |
| Added: | 3rd February 2013, 00:11:24 |
| Downloads: | 2,425 |
| Author: | Paul Tally |
| Size: | 3.13 MB |
| Category: Flight Simulator X - Gauges | |
| Boeing 727-100/200 Various Fixes |
|
File Description:
The follow are corrections or added enhancement to the Captain Sims B727-100/200/F.
-1) Airspeed Indicator Enhancement
-2) ADI & Flight Director Corrections
-3) A/P Enhancement for Flight Director
-4) Radar Altimeter Fix
-5) TAT Display toggle via DME Indicators
-6) Trim Sensitivity Fix
-7) Auto Setting of Altimeter Alert & Elevator Trim
-8) GPWS Switch Fixed
-9) NAV/GPS toggle via Marker Beacon Sensitivity Switch
| Filename: | cs_b727_fixes.zip |
| License: | Freeware, limited distribution |
| Added: | 7th February 2015, 20:19:18 |
| Downloads: | 943 |
| Author: | Paul Tally |
| Size: | 31 KB |
